Description
EXTREMELY DURABLE BALLISTIC PLATE
FEATURES:- NIJ Tested 0101.06
- Multi-Hit Capability
- Water-Resistant
- Multi-Shot Capability
- Increased ballistic protection for vital organs
- Unprecedented durability
- Truncated corners improve comfort
- Provide greater maneuverability
- State-of-the-art Nylon fabric cover
- Ceramic is bonded to a fiber-reinforced backing
- Laminated fabric wrapped around the insert plate
This model complies with NIJ Standard-0101.06 for Ballistic Resistance of Body Armor
The Insert Plate measures:
Size: 10" x 12" x .98" Weight: 5.95 lbs | 2.70 kg
Technological advances in high tenacity fibers and aerospace-grade adhesives have facilitated the creation of Insert Plates to protect against high-velocity small arms ammunition.
BALLISTICS:
This insert plate passes the NIJ 0101.06 drop test and defeats the following ammunition when tested stand-alone according to NIJ 0101.06. The Level IV++ insert plate will stop lesser threats as well as the ones listed here.
-
7.62 x 63 M2AP / 30.06 M2AP - ARMOR PIERCING
-
7.62 x 51 M80 BALL - LEAD CORE
-
7.62 x 54 R B32 API - ARMOR PIERCING INCENDIARY
-
7.62 x 39 M43 - MILD STEEL CORE
-
7.62 x 39 M67 - LEAD CORE
-
7.62 x 51 AP - ARMOR PIERCING
-
7.62 x 39 API - ARMOR PIERCING INCENDIARY
-
7.62 x 54 R - LPS - MILD STEEL CORE
-
5.56 x 45 M855/SS109 - MILD STEEL CORE
-
5.56 x 45 M193/SS92 - LEAD CORE
Construction:
Ceramic is bonded to the front of a pre-molded Aramid composite laminate using toughened aerospace-grade adhesives.
An additional layer of high tenacity fabric is laminated around the entire plate to reinforce its structural integrity and mitigate sprawling.
Nylon fabric is wrapped around the plate and bonded with contact adhesive to provide abrasion resistance and enhance aesthetics.
Warranty:
The Insert Plate is guaranteed against faulty ballistic materials for 5 years.
IMPORTANT NOTE: This item cannot be purchased by anyone who has a felony conviction, cannot be shipped to any address in Connecticut, and cannot be shipped internationally (US only). If you have any questions, please let us know via phone or email.

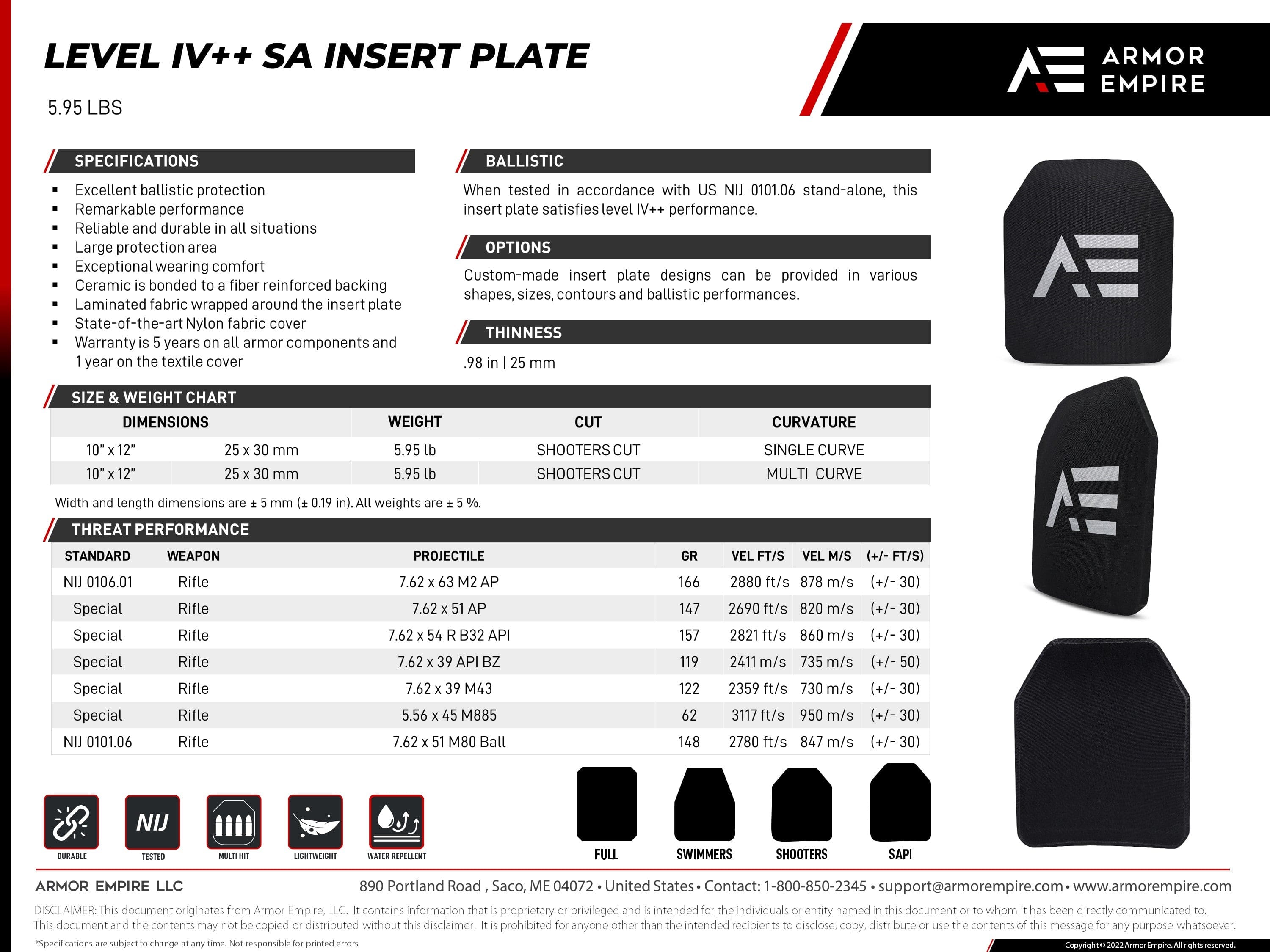

PRODUCT DATASHEET
CLICK HERE: LEVEL IV++ SA
